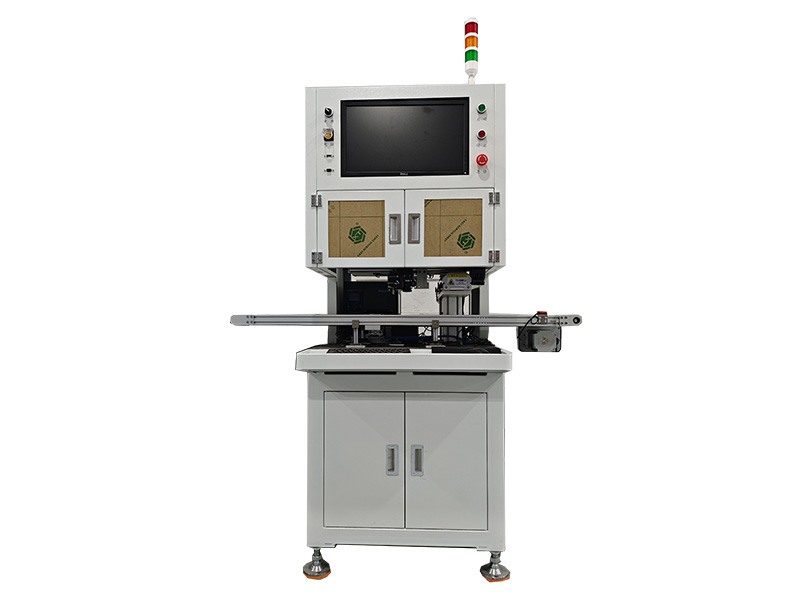

Applicable Products
is applied to print two-dimensional code, and then stick the two-dimensional code label, which is suitable for the use of one object one code printing.
Product advantages
1.The self-developed visual alignment mounting software integrates the motion control system.
2. Operating system : Microsoft Win7 / Win8 / Win10, 64-bit or 32-bit.
3. The software interface is simple, easy to learn, easy to operate.
4.XYZ axis precision screw guide rail module, coil flying to the feeder, removable suction nozzle group.
5.No tooling, pipeline transmission, high general compatibility.
6.Real-time printing, can be docked MES.
Technical indicators
1. Fitting accuracy : ± 0.15mm
2. Bonding efficiency : up to 1000PCS / H
3.Vision : 200X120mm ( can be customized according to the physical )
4.Film material specifications : 100X80mm
5.Equipment specification : 1300mm long X 1000mm wide X 1750mm high
6.Power supply requirements : 220 ± 10 % VAC, 50-60hz
7.Gas supply requirements : 0.4-0.7Mpa
