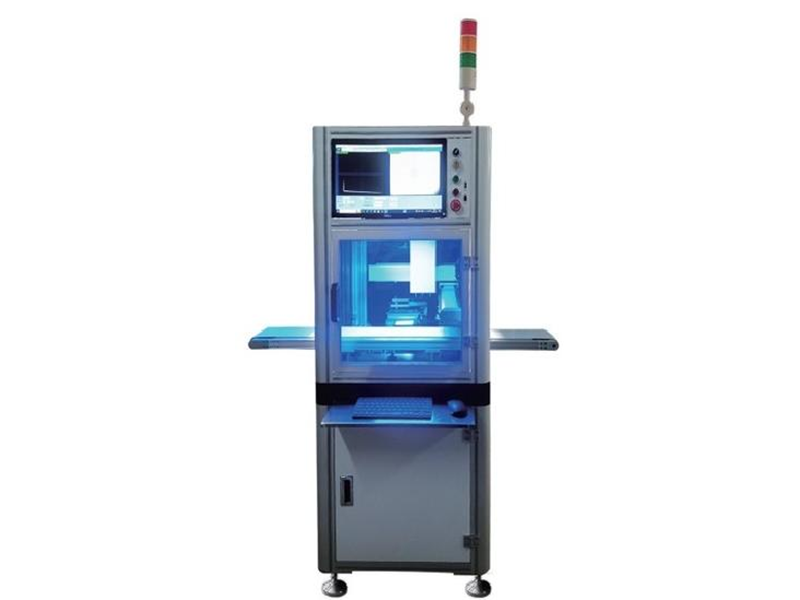

Applicable Products
is applied to the backlight board bonding industry, stick two-dimensional code labels, adhesive paper, strip, conductive film, conductive cloth, double-sided adhesive, high-temperature adhesive, display module.
Product advantages
1.The self-developed visual alignment mounting software integrates the motion control system.
2. Operating system : Microsoft Win7 / Win8 / Win10, 64-bit or 32-bit.
3. The software interface is simple, easy to learn, easy to operate.
4.XYZ axis precision screw guide rail module, coil flying to the feeder, removable suction nozzle group.
5. No tooling, pipeline transmission, high general compatibility.
6. Replace labor, save manpower, reduce management costs.
Technical indicators
1. Fitting accuracy : ± 0.15mm
2. Fit efficiency : up to 1500PCS / H
3. Vision : 200X120mm ( can be customized according to the physical )
4. Membrane material specification : 200X80mm
5. Equipment specification : 1300mm long X 1000mm wide X 1750mm high
6. Power supply requirements : 220 ± 10 % VAC, 50-60hz
7. Gas supply requirements : 0.4-0.7Mpa
